RTT::marsh::TiXmlNode Class Reference

The parent class for everything in the Document Object Model. More...

#include <rtt/marsh/tinyxml.h>

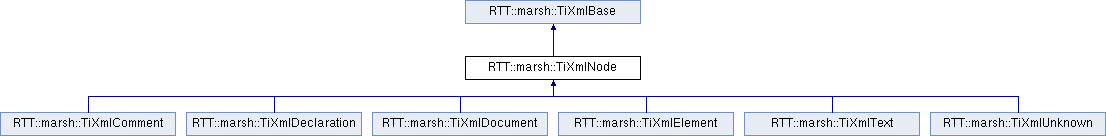

Inheritance diagram for RTT::marsh::TiXmlNode:
RTT::marsh::TiXmlBase RTT::marsh::TiXmlComment RTT::marsh::TiXmlDeclaration RTT::marsh::TiXmlDocument RTT::marsh::TiXmlElement RTT::marsh::TiXmlText RTT::marsh::TiXmlUnknown

List of all members.

Public Types

enum  NodeType {
  DOCUMENT, ELEMENT, COMMENT, UNKNOWN,
  TEXT, DECLARATION, TYPECOUNT
}
 The types of XML nodes supported by TinyXml. More...
enum  {
  TIXML_NO_ERROR = 0, TIXML_ERROR, TIXML_ERROR_OPENING_FILE, TIXML_ERROR_OUT_OF_MEMORY,
  TIXML_ERROR_PARSING_ELEMENT, TIXML_ERROR_FAILED_TO_READ_ELEMENT_NAME, TIXML_ERROR_READING_ELEMENT_VALUE, TIXML_ERROR_READING_ATTRIBUTES,
  TIXML_ERROR_PARSING_EMPTY, TIXML_ERROR_READING_END_TAG, TIXML_ERROR_PARSING_UNKNOWN, TIXML_ERROR_PARSING_COMMENT,
  TIXML_ERROR_PARSING_DECLARATION, TIXML_ERROR_DOCUMENT_EMPTY, TIXML_ERROR_EMBEDDED_NULL, TIXML_ERROR_PARSING_CDATA,
  TIXML_ERROR_STRING_COUNT
}

Public Member Functions

const char * Value () const
 The meaning of 'value' changes for the specific type of TiXmlNode.
void SetValue (const char *_value)
 Changes the value of the node.
void Clear ()
 Delete all the children of this node. Does not affect 'this'.
TiXmlNodeParent ()
 One step up the DOM.
const TiXmlNodeParent () const
const TiXmlNodeFirstChild () const
 The first child of this node. Will be null if there are no children.
TiXmlNodeFirstChild ()
const TiXmlNodeFirstChild (const char *value) const
 The first child of this node with the matching 'value'. Will be null if none found.
TiXmlNodeFirstChild (const char *value)
 The first child of this node with the matching 'value'. Will be null if none found.
const TiXmlNodeLastChild () const
TiXmlNodeLastChild ()
 The last child of this node. Will be null if there are no children.
const TiXmlNodeLastChild (const char *value) const
TiXmlNodeLastChild (const char *value)
 The last child of this node matching 'value'. Will be null if there are no children.
const TiXmlNodeIterateChildren (const TiXmlNode *previous) const
 An alternate way to walk the children of a node.
TiXmlNodeIterateChildren (TiXmlNode *previous)
const TiXmlNodeIterateChildren (const char *value, const TiXmlNode *previous) const
 This flavor of IterateChildren searches for children with a particular 'value'.
TiXmlNodeIterateChildren (const char *value, TiXmlNode *previous)
TiXmlNodeInsertEndChild (const TiXmlNode &addThis)
 Add a new node related to this.
TiXmlNodeLinkEndChild (TiXmlNode *addThis)
 Add a new node related to this.
TiXmlNodeInsertBeforeChild (TiXmlNode *beforeThis, const TiXmlNode &addThis)
 Add a new node related to this.
TiXmlNodeInsertAfterChild (TiXmlNode *afterThis, const TiXmlNode &addThis)
 Add a new node related to this.
TiXmlNodeReplaceChild (TiXmlNode *replaceThis, const TiXmlNode &withThis)
 Replace a child of this node.
bool RemoveChild (TiXmlNode *removeThis)
 Delete a child of this node.
const TiXmlNodePreviousSibling () const
 Navigate to a sibling node.
TiXmlNodePreviousSibling ()
const TiXmlNodePreviousSibling (const char *) const
 Navigate to a sibling node.
TiXmlNodePreviousSibling (const char *)
const TiXmlNodeNextSibling () const
 Navigate to a sibling node.
TiXmlNodeNextSibling ()
const TiXmlNodeNextSibling (const char *) const
 Navigate to a sibling node with the given 'value'.
TiXmlNodeNextSibling (const char *)
const TiXmlElementNextSiblingElement () const
 Convenience function to get through elements.
TiXmlElementNextSiblingElement ()
const TiXmlElementNextSiblingElement (const char *) const
 Convenience function to get through elements.
TiXmlElementNextSiblingElement (const char *)
const TiXmlElementFirstChildElement () const
 Convenience function to get through elements.
TiXmlElementFirstChildElement ()
const TiXmlElementFirstChildElement (const char *value) const
 Convenience function to get through elements.
TiXmlElementFirstChildElement (const char *value)
int Type () const
 Query the type (as an enumerated value, above) of this node.
const TiXmlDocumentGetDocument () const
 Return a pointer to the Document this node lives in.
TiXmlDocumentGetDocument ()
bool NoChildren () const
 Returns true if this node has no children.
virtual const TiXmlDocumentToDocument () const
 Cast to a more defined type. Will return null if not of the requested type.
virtual const TiXmlElementToElement () const
 Cast to a more defined type. Will return null if not of the requested type.
virtual const TiXmlCommentToComment () const
 Cast to a more defined type. Will return null if not of the requested type.
virtual const TiXmlUnknownToUnknown () const
 Cast to a more defined type. Will return null if not of the requested type.
virtual const TiXmlTextToText () const
 Cast to a more defined type. Will return null if not of the requested type.
virtual const TiXmlDeclarationToDeclaration () const
 Cast to a more defined type. Will return null if not of the requested type.
virtual TiXmlDocumentToDocument ()
 Cast to a more defined type. Will return null if not of the requested type.
virtual TiXmlElementToElement ()
 Cast to a more defined type. Will return null if not of the requested type.
virtual TiXmlCommentToComment ()
 Cast to a more defined type. Will return null if not of the requested type.
virtual TiXmlUnknownToUnknown ()
 Cast to a more defined type. Will return null if not of the requested type.
virtual TiXmlTextToText ()
 Cast to a more defined type. Will return null if not of the requested type.
virtual TiXmlDeclarationToDeclaration ()
 Cast to a more defined type. Will return null if not of the requested type.
virtual TiXmlNodeClone () const =0
 Create an exact duplicate of this node and return it.
virtual void Print (FILE *cfile, int depth) const =0
 All TinyXml classes can print themselves to a filestream.
int Row () const
 Return the position, in the original source file, of this node or attribute.
int Column () const
 See Row()
void SetUserData (void *user)
void * GetUserData ()
virtual const char * Parse (const char *p, TiXmlParsingData *data, TiXmlEncoding encoding)=0

Static Public Member Functions

static void SetCondenseWhiteSpace (bool condense)
 The world does not agree on whether white space should be kept or not.
static bool IsWhiteSpaceCondensed ()
 Return the current white space setting.

Static Public Attributes

static const int utf8ByteTable [256]

Protected Member Functions

 TiXmlNode (NodeType _type)
void CopyTo (TiXmlNode *target) const
TiXmlNodeIdentify (const char *start, TiXmlEncoding encoding)
virtual void StreamOut (TIXML_OSTREAM *) const =0

Static Protected Member Functions

static const char * SkipWhiteSpace (const char *, TiXmlEncoding encoding)
static bool IsWhiteSpace (char c)
static bool IsWhiteSpace (int c)
static const char * ReadName (const char *p, TIXML_STRING *name, TiXmlEncoding encoding)
static const char * ReadText (const char *in, TIXML_STRING *text, bool ignoreWhiteSpace, const char *endTag, bool ignoreCase, TiXmlEncoding encoding)
static const char * GetEntity (const char *in, char *value, int *length, TiXmlEncoding encoding)
static const char * GetChar (const char *p, char *_value, int *length, TiXmlEncoding encoding)
static void PutString (const TIXML_STRING &str, TIXML_OSTREAM *out)
static void PutString (const TIXML_STRING &str, TIXML_STRING *out)
static bool StringEqual (const char *p, const char *endTag, bool ignoreCase, TiXmlEncoding encoding)
static int IsAlpha (unsigned char anyByte, TiXmlEncoding encoding)
static int IsAlphaNum (unsigned char anyByte, TiXmlEncoding encoding)
static int ToLower (int v, TiXmlEncoding encoding)
static void ConvertUTF32ToUTF8 (unsigned long input, char *output, int *length)

Protected Attributes

TiXmlNodeparent
NodeType type
TiXmlNodefirstChild
TiXmlNodelastChild
TIXML_STRING value
TiXmlNodeprev
TiXmlNodenext
TiXmlCursor location
void * userData
 Field containing a generic user pointer.

Static Protected Attributes

static const char * errorString [TIXML_ERROR_STRING_COUNT]

Friends

class TiXmlDocument
class TiXmlElement
TIXML_OSTREAM & operator<< (TIXML_OSTREAM &out, const TiXmlNode &base)

Detailed Description

The parent class for everything in the Document Object Model.

(Except for attributes). Nodes have siblings, a parent, and children. A node can be in a document, or stand on its own. The type of a TiXmlNode can be queried, and it can be cast to its more defined type.

Definition at line 425 of file tinyxml.h.


Member Enumeration Documentation

The types of XML nodes supported by TinyXml.

(All the unsupported types are picked up by UNKNOWN.)

Definition at line 467 of file tinyxml.h.


Member Function Documentation

virtual TiXmlNode* RTT::marsh::TiXmlNode::Clone ( ) const [pure virtual]

Create an exact duplicate of this node and return it.

The memory must be deleted by the caller.

Implemented in RTT::marsh::TiXmlDocument, RTT::marsh::TiXmlUnknown, RTT::marsh::TiXmlDeclaration, RTT::marsh::TiXmlText, RTT::marsh::TiXmlComment, and RTT::marsh::TiXmlElement.

Referenced by InsertAfterChild(), InsertBeforeChild(), InsertEndChild(), and ReplaceChild().

Return a pointer to the Document this node lives in.

Returns null if not in a document.

Definition at line 631 of file tinyxml.cpp.

References ToDocument().

Referenced by LinkEndChild(), and RTT::marsh::TiXmlElement::SetAttribute().

TiXmlNode * RTT::marsh::TiXmlNode::InsertAfterChild ( TiXmlNode afterThis,
const TiXmlNode addThis
)

Add a new node related to this.

Adds a child after the specified child. Returns a pointer to the new object or NULL if an error occured.

Definition at line 289 of file tinyxml.cpp.

References Clone().

TiXmlNode * RTT::marsh::TiXmlNode::InsertBeforeChild ( TiXmlNode beforeThis,
const TiXmlNode addThis
)

Add a new node related to this.

Adds a child before the specified child. Returns a pointer to the new object or NULL if an error occured.

Definition at line 263 of file tinyxml.cpp.

References Clone().

Add a new node related to this.

Adds a child past the LastChild. Returns a pointer to the new object or NULL if an error occured.

Definition at line 253 of file tinyxml.cpp.

References Clone(), and LinkEndChild().

const TiXmlNode * RTT::marsh::TiXmlNode::IterateChildren ( const TiXmlNode previous) const

An alternate way to walk the children of a node.

One way to iterate over nodes is:

			for( child = parent->FirstChild(); child; child = child->NextSibling() )


IterateChildren does the same thing with the syntax:

			child = 0;
			while( child = parent->IterateChildren( child ) )


IterateChildren takes the previous child as input and finds the next one. If the previous child is null, it returns the first. IterateChildren will return null when done.

Definition at line 411 of file tinyxml.cpp.

References FirstChild(), and NextSibling().

Add a new node related to this.

Adds a child past the LastChild.

NOTE: the node to be added is passed by pointer, and will be henceforth owned (and deleted) by tinyXml. This method is efficient and avoids an extra copy, but should be used with care as it uses a different memory model than the other insert functions.

See also:
InsertEndChild

Definition at line 233 of file tinyxml.cpp.

References GetDocument().

Referenced by InsertEndChild(), and RTT::marsh::TiXmlDocument::Parse().

Convenience function to get through elements.

Calls NextSibling and ToElement. Will skip all non-Element nodes. Returns 0 if there is not another element.

Definition at line 574 of file tinyxml.cpp.

References NextSibling(), and ToElement().

Referenced by RTT::marsh::TiXmlHandle::ChildElement().

const TiXmlElement * RTT::marsh::TiXmlNode::NextSiblingElement ( const char *  _value) const

Convenience function to get through elements.

Calls NextSibling and ToElement. Will skip all non-Element nodes. Returns 0 if there is not another element.

Definition at line 602 of file tinyxml.cpp.

References NextSibling(), and ToElement().

virtual void RTT::marsh::TiXmlBase::Print ( FILE *  cfile,
int  depth
) const [pure virtual, inherited]

All TinyXml classes can print themselves to a filestream.

This is a formatted print, and will insert tabs and newlines.

(For an unformatted stream, use the << operator.)

Implemented in RTT::marsh::TiXmlDocument, RTT::marsh::TiXmlUnknown, RTT::marsh::TiXmlDeclaration, RTT::marsh::TiXmlText, RTT::marsh::TiXmlComment, RTT::marsh::TiXmlElement, and RTT::marsh::TiXmlAttribute.

Referenced by RTT::marsh::TiXmlElement::Print(), and RTT::marsh::TiXmlDocument::Print().

TiXmlNode * RTT::marsh::TiXmlNode::ReplaceChild ( TiXmlNode replaceThis,
const TiXmlNode withThis
)

Replace a child of this node.

Returns a pointer to the new object or NULL if an error occured.

Definition at line 315 of file tinyxml.cpp.

References Clone().

int RTT::marsh::TiXmlBase::Row ( ) const [inline, inherited]

Return the position, in the original source file, of this node or attribute.

The row and column are 1-based. (That is the first row and first column is 1,1). If the returns values are 0 or less, then the parser does not have a row and column value.

Generally, the row and column value will be set when the TiXmlDocument::Load(), TiXmlDocument::LoadFile(), or any TiXmlNode::Parse() is called. It will NOT be set when the DOM was created from operator>>.

The values reflect the initial load. Once the DOM is modified programmatically (by adding or changing nodes and attributes) the new values will NOT update to reflect changes in the document.

There is a minor performance cost to computing the row and column. Computation can be disabled if TiXmlDocument::SetTabSize() is called with 0 as the value.

See also:
TiXmlDocument::SetTabSize()

Definition at line 235 of file tinyxml.h.

static void RTT::marsh::TiXmlBase::SetCondenseWhiteSpace ( bool  condense) [inline, static, inherited]

The world does not agree on whether white space should be kept or not.

In order to make everyone happy, these global, static functions are provided to set whether or not TinyXml will condense all white space into a single space or not. The default is to condense. Note changing this values is not thread safe.

Definition at line 212 of file tinyxml.h.

void RTT::marsh::TiXmlNode::SetValue ( const char *  _value) [inline]

Changes the value of the node.

Defined as:

		Document:	filename of the xml file
		Element:	name of the element
		Comment:	the comment text
		Unknown:	the tag contents
		Text:		the text string


Definition at line 511 of file tinyxml.h.

Referenced by RTT::marsh::TiXmlText::TiXmlText().

int RTT::marsh::TiXmlNode::Type ( ) const [inline]

Query the type (as an enumerated value, above) of this node.

The possible types are: DOCUMENT, ELEMENT, COMMENT, UNKNOWN, TEXT, and DECLARATION.

Definition at line 664 of file tinyxml.h.

const char* RTT::marsh::TiXmlNode::Value ( ) const [inline]

The meaning of 'value' changes for the specific type of TiXmlNode.

		Document:	filename of the xml file
		Element:	name of the element
		Comment:	the comment text
		Unknown:	the tag contents
		Text:		the text string


The subclasses will wrap this function.

Definition at line 492 of file tinyxml.h.

Referenced by RTT::marsh::TiXmlElement::Clone(), FirstChild(), RTT::marsh::TiXmlElement::GetText(), LastChild(), NextSibling(), and PreviousSibling().


Member Data Documentation

const char * RTT::marsh::TiXmlBase::errorString [static, protected, inherited]
Initial value:
{
    "No error",
    "Error",
    "Failed to open file",
    "Memory allocation failed.",
    "Error parsing Element.",
    "Failed to read Element name",
    "Error reading Element value.",
    "Error reading Attributes.",
    "Error: empty tag.",
    "Error reading end tag.",
    "Error parsing Unknown.",
    "Error parsing Comment.",
    "Error parsing Declaration.",
    "Error document empty.",
    "Error null (0) or unexpected EOF found in input stream.",
    "Error parsing CDATA.",
}

Definition at line 373 of file tinyxml.h.

const int RTT::marsh::TiXmlBase::utf8ByteTable [static, inherited]
Initial value:
{

        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,
        2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,
        3,  3,  3,  3,  3,  3,  3,  3,  3,  3,  3,  3,  3,  3,  3,  3,
        4,  4,  4,  4,  4,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1
}

Definition at line 243 of file tinyxml.h.


The documentation for this class was generated from the following files:
