RTT::base::ChannelElement< T > Class Template Reference

A typed version of ChannelElementBase. More...

#include <rtt/base/ChannelElement.hpp>

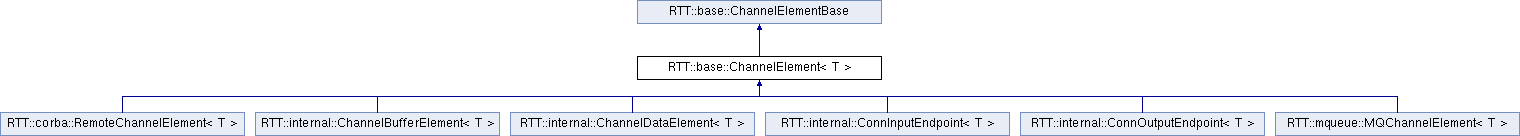

Inheritance diagram for RTT::base::ChannelElement< T >:
RTT::base::ChannelElementBase RTT::corba::RemoteChannelElement< T > RTT::internal::ChannelBufferElement< T > RTT::internal::ChannelDataElement< T > RTT::internal::ConnInputEndpoint< T > RTT::internal::ConnOutputEndpoint< T > RTT::mqueue::MQChannelElement< T >

List of all members.

Public Types

typedef T value_t
typedef boost::intrusive_ptr
< ChannelElement< T > >
shared_ptr
typedef boost::call_traits< T >
::param_type
param_t
typedef boost::call_traits< T >
::reference
reference_t

Public Member Functions

shared_ptr getOutput ()
 Returns the next channel element in the channel's propagation direction.
shared_ptr getInput ()
 Returns the current input channel element.
virtual bool data_sample (param_t sample)
 Provides a data sample to initialize this connection.
virtual value_t data_sample ()
virtual bool write (param_t sample)
 Writes a new sample on this connection.
virtual FlowStatus read (reference_t sample, bool copy_old_data)
 Reads a sample from the connection.
void removeInput ()
 Removes the input channel (if any).
ChannelElementBase::shared_ptr getInputEndPoint ()
 Returns the first input channel element of this connection.
ChannelElementBase::shared_ptr getOutputEndPoint ()
 Returns the last output channel element of this connection.
void setOutput (shared_ptr output)
 Sets the output of this channel element to output and sets the input of output to this.
virtual bool signal ()
 Signals that there is new data available on this channel By default, the channel element forwards the call to its output.
virtual bool inputReady ()
 This is called by an input port when it is ready to receive data.
virtual void clear ()
 Clears any data stored by the channel.
virtual void disconnect (bool forward)
 Performs a disconnection of this channel's endpoints.
virtual PortInterfacegetPort () const
 Gets the port this channel element is connected to.

Protected Member Functions

void ref ()
 Increases the reference count.
void deref ()
 Decreases the reference count, and deletes the object if it is zero.

Detailed Description

template<typename T>
class RTT::base::ChannelElement< T >

A typed version of ChannelElementBase.

It defines generic methods that are type-specific (like write and read)

Definition at line 54 of file ChannelElement.hpp.


Member Function Documentation

void ChannelElementBase::clear ( ) [virtual, inherited]

Clears any data stored by the channel.

It means that ChannelElement::read() will return false afterwards (provided that no new data has been written on the meantime of course)

By default, the channel element forwards the calls to its input

Reimplemented in RTT::internal::ChannelBufferElement< T >, and RTT::internal::ChannelDataElement< T >.

Definition at line 116 of file ChannelInterface.cpp.

References RTT::base::ChannelElementBase::getInput().

template<typename T>
virtual bool RTT::base::ChannelElement< T >::data_sample ( param_t  sample) [inline, virtual]

Provides a data sample to initialize this connection.

This is used before the first write() in order to inform this connection of the size of the data. As such enough storage space can be allocated before the actual writing begins.

Returns:
false if an error occured that requires the channel to be invalidated.

Reimplemented in RTT::internal::ChannelBufferElement< T >, and RTT::internal::ChannelDataElement< T >.

Definition at line 82 of file ChannelElement.hpp.

References RTT::base::ChannelElement< T >::data_sample(), and RTT::base::ChannelElement< T >::getOutput().

Referenced by RTT::base::ChannelElement< T >::data_sample(), RTT::InputPort< T >::getDataSample(), and RTT::mqueue::MQChannelElement< T >::inputReady().

void ChannelElementBase::disconnect ( bool  forward) [virtual, inherited]

Performs a disconnection of this channel's endpoints.

If forward is true, then the disconnection is initiated by the input endpoint. Otherwise, it has been initiated by the output endpoint.

Reimplemented in RTT::corba::RemoteChannelElement< T >, RTT::internal::ConnOutputEndpoint< T >, and RTT::internal::ConnInputEndpoint< T >.

Definition at line 75 of file ChannelInterface.cpp.

References RTT::base::ChannelElementBase::getInput(), and RTT::base::ChannelElementBase::getOutput().

template<typename T>
shared_ptr RTT::base::ChannelElement< T >::getInput ( ) [inline]

Returns the current input channel element.

This will only return a valid channel element if another element has received this object as an argument to setOutput().

Returns:

Reimplemented from RTT::base::ChannelElementBase.

Definition at line 68 of file ChannelElement.hpp.

Referenced by RTT::corba::RemoteChannelElement< T >::inputReady(), RTT::base::ChannelElement< T >::read(), and RTT::mqueue::MQChannelElement< T >::signal().

ChannelElementBase::shared_ptr ChannelElementBase::getInputEndPoint ( ) [inherited]

Returns the first input channel element of this connection.

Will return the channel element the furthest away from the input port, or this if none.

Returns:
getInput() ? getInput()->getInputEndPoint() : this

Definition at line 96 of file ChannelInterface.cpp.

References RTT::base::ChannelElementBase::getInput().

ChannelElementBase::shared_ptr ChannelElementBase::getOutputEndPoint ( ) [inherited]

Returns the last output channel element of this connection.

Will return the channel element the furthest away from the output port, or this if none.

Returns:
getOutput() ? getOutput()->getInputEndPoint() : this

Definition at line 101 of file ChannelInterface.cpp.

References RTT::base::ChannelElementBase::getOutput().

PortInterface * ChannelElementBase::getPort ( ) const [virtual, inherited]

Gets the port this channel element is connected to.

Returns:
null if no port is connected to this element, the port (or a proxy representing the port) otherwise.

Reimplemented in RTT::internal::ConnOutputEndpoint< T >, and RTT::internal::ConnInputEndpoint< T >.

Definition at line 131 of file ChannelInterface.cpp.

bool ChannelElementBase::inputReady ( ) [virtual, inherited]

This is called by an input port when it is ready to receive data.

Each channel element has the responsibility to pass this notification on to the next, in the direction of the output.

Returns:
false if a fatal connection failure was encountered and the channel needs to be destroyed.

Reimplemented in RTT::corba::RemoteChannelElement< T >, RTT::mqueue::MQChannelElement< T >, RTT::internal::ConnOutputEndpoint< T >, and RTT::internal::ConnInputEndpoint< T >.

Definition at line 107 of file ChannelInterface.cpp.

References RTT::base::ChannelElementBase::getInput().

template<typename T>
virtual FlowStatus RTT::base::ChannelElement< T >::read ( reference_t  sample,
bool  copy_old_data
) [inline, virtual]

Reads a sample from the connection.

sample is a reference which will get updated if a sample is available. The method returns true if a sample was available, and false otherwise. If false is returned, then sample is not modified by the method

Reimplemented in RTT::internal::ChannelBufferElement< T >, and RTT::internal::ChannelDataElement< T >.

Definition at line 116 of file ChannelElement.hpp.

References RTT::base::ChannelElement< T >::getInput(), and RTT::base::ChannelElement< T >::read().

Referenced by RTT::base::ChannelElement< T >::read(), and RTT::mqueue::MQChannelElement< T >::signal().

Removes the input channel (if any).

This call may delete channels from memory.

void ChannelElementBase::setOutput ( shared_ptr  output) [inherited]

Sets the output of this channel element to output and sets the input of output to this.

This implies that this channel element becomes the input of output. There is no setInput function since this function does both setting input and output of this and output.

Parameters:
outputthe next element in chain.

Definition at line 68 of file ChannelInterface.cpp.

Referenced by RTT::internal::ConnFactory::buildBufferedChannelInput(), RTT::internal::ConnFactory::buildBufferedChannelOutput(), and RTT::internal::ConnFactory::buildChannelInput().

bool ChannelElementBase::signal ( ) [virtual, inherited]

Signals that there is new data available on this channel By default, the channel element forwards the call to its output.

Returns:
false if an error occured that requires the channel to be invalidated. In no ways it indicates that the sample has been received by the other side of the channel.

Reimplemented in RTT::corba::RemoteChannelElement< T >, RTT::mqueue::MQChannelElement< T >, and RTT::internal::ConnOutputEndpoint< T >.

Definition at line 123 of file ChannelInterface.cpp.

References RTT::base::ChannelElementBase::getOutput().

Referenced by RTT::internal::ChannelDataElement< T >::write(), and RTT::internal::ChannelBufferElement< T >::write().

template<typename T>
virtual bool RTT::base::ChannelElement< T >::write ( param_t  sample) [inline, virtual]

Writes a new sample on this connection.

sample is the sample to write.

Returns:
false if an error occured that requires the channel to be invalidated. In no ways it indicates that the sample has been received by the other side of the channel.

Reimplemented in RTT::internal::ChannelBufferElement< T >, and RTT::internal::ChannelDataElement< T >.

Definition at line 103 of file ChannelElement.hpp.

References RTT::base::ChannelElement< T >::getOutput(), and RTT::base::ChannelElement< T >::write().

Referenced by RTT::mqueue::MQChannelElement< T >::signal(), and RTT::base::ChannelElement< T >::write().


The documentation for this class was generated from the following file:
