RTT::corba::RemoteChannelElement< T > Class Template Reference

Implements the CRemoteChannelElement of the CORBA IDL interface. More...

#include <rtt/transports/corba/RemoteChannelElement.hpp>

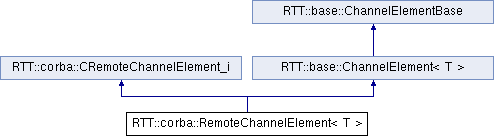

Inheritance diagram for RTT::corba::RemoteChannelElement< T >:
RTT::corba::CRemoteChannelElement_i RTT::base::ChannelElement< T > RTT::base::ChannelElementBase

List of all members.

Public Types

typedef T value_t
typedef boost::intrusive_ptr
< ChannelElement< T > >
shared_ptr
typedef boost::call_traits< T >
::param_type
param_t
typedef boost::call_traits< T >
::reference
reference_t

Public Member Functions

 RemoteChannelElement (CorbaTypeTransporter const &transport, DataFlowInterface *sender, PortableServer::POA_ptr poa, bool is_pull)
 Create a channel element for remote data exchange.
void _add_ref ()
 Increase the reference count, called from the CORBA side.
void _remove_ref ()
 Decrease the reference count, called from the CORBA side.
CORBA::Boolean remoteSignal () ACE_THROW_SPEC((CORBA
 CORBA IDL function.
bool signal ()
 Signals that there is new data available on this channel By default, the channel element forwards the call to its output.
virtual void transferSamples ()
void disconnect () ACE_THROW_SPEC((CORBA
 CORBA IDL function.
void remoteDisconnect (bool writer_to_reader) ACE_THROW_SPEC((CORBA
void disconnect (bool writer_to_reader) ACE_THROW_SPEC((CORBA
 CORBA IDL function.
FlowStatus read (typename base::ChannelElement< T >::reference_t sample, bool copy_old_data)
CFlowStatus read (::CORBA::Any_out sample, bool copy_old_data) ACE_THROW_SPEC((CORBA
 CORBA IDL function.
bool write (typename base::ChannelElement< T >::param_t sample)
bool write (const ::CORBA::Any &sample) ACE_THROW_SPEC((CORBA
 CORBA IDL function.
virtual bool data_sample (typename base::ChannelElement< T >::param_t sample)
virtual bool inputReady ()
 CORBA IDL function.
virtual
RTT::corba::CRemoteChannelElement_ptr
activate_this ()
void setCDataFlowInterface (CDataFlowInterface_i *dataflow)
PortableServer::POA_ptr _default_POA ()
shared_ptr getOutput ()
 Returns the next channel element in the channel's propagation direction.
shared_ptr getInput ()
 Returns the current input channel element.
virtual bool data_sample (param_t sample)
 Provides a data sample to initialize this connection.
virtual value_t data_sample ()
virtual bool write (param_t sample)
 Writes a new sample on this connection.
virtual FlowStatus read (reference_t sample, bool copy_old_data)
 Reads a sample from the connection.
void removeInput ()
 Removes the input channel (if any).
ChannelElementBase::shared_ptr getInputEndPoint ()
 Returns the first input channel element of this connection.
ChannelElementBase::shared_ptr getOutputEndPoint ()
 Returns the last output channel element of this connection.
void setOutput (shared_ptr output)
 Sets the output of this channel element to output and sets the input of output to this.
virtual void clear ()
 Clears any data stored by the channel.
virtual PortInterfacegetPort () const
 Gets the port this channel element is connected to.

Protected Member Functions

void ref ()
 Increases the reference count.
void deref ()
 Decreases the reference count, and deletes the object if it is zero.

Protected Attributes

CRemoteChannelElement_var remote_side
RTT::corba::CorbaTypeTransporter
const &
transport
PortableServer::POA_var mpoa
CDataFlowInterface_imdataflow

Detailed Description

template<typename T>
class RTT::corba::RemoteChannelElement< T >

Implements the CRemoteChannelElement of the CORBA IDL interface.

It converts the C++ calls into CORBA calls and vice versa. A read will cause a call to the remote channel (which is of the same type of this RemoteChannelElement) which returns an Any with the data. A similar mechanism is in place for a write.

Definition at line 58 of file RemoteChannelElement.hpp.


Constructor & Destructor Documentation

template<typename T>
RTT::corba::RemoteChannelElement< T >::RemoteChannelElement ( CorbaTypeTransporter const &  transport,
DataFlowInterface sender,
PortableServer::POA_ptr  poa,
bool  is_pull
) [inline]

Create a channel element for remote data exchange.

Parameters:
transportThe type specific object that will be used to marshal the data.
poaThe POA that manages the underlying CRemoteChannelElement_i.

Definition at line 93 of file RemoteChannelElement.hpp.

References RTT::corba::CorbaDispatcher::Instance(), and RTT::base::ChannelElementBase::ref().


Member Function Documentation

void ChannelElementBase::clear ( ) [virtual, inherited]

Clears any data stored by the channel.

It means that ChannelElement::read() will return false afterwards (provided that no new data has been written on the meantime of course)

By default, the channel element forwards the calls to its input

Reimplemented in RTT::internal::ChannelBufferElement< T >, and RTT::internal::ChannelDataElement< T >.

Definition at line 116 of file ChannelInterface.cpp.

References RTT::base::ChannelElementBase::getInput().

template<typename T>
virtual bool RTT::base::ChannelElement< T >::data_sample ( param_t  sample) [inline, virtual, inherited]

Provides a data sample to initialize this connection.

This is used before the first write() in order to inform this connection of the size of the data. As such enough storage space can be allocated before the actual writing begins.

Returns:
false if an error occured that requires the channel to be invalidated.

Reimplemented in RTT::internal::ChannelBufferElement< T >, and RTT::internal::ChannelDataElement< T >.

Definition at line 82 of file ChannelElement.hpp.

References RTT::base::ChannelElement< T >::data_sample(), and RTT::base::ChannelElement< T >::getOutput().

Referenced by RTT::base::ChannelElement< T >::data_sample(), RTT::InputPort< T >::getDataSample(), and RTT::mqueue::MQChannelElement< T >::inputReady().

template<typename T>
shared_ptr RTT::base::ChannelElement< T >::getInput ( ) [inline, inherited]

Returns the current input channel element.

This will only return a valid channel element if another element has received this object as an argument to setOutput().

Returns:

Reimplemented from RTT::base::ChannelElementBase.

Definition at line 68 of file ChannelElement.hpp.

Referenced by RTT::corba::RemoteChannelElement< T >::inputReady(), RTT::base::ChannelElement< T >::read(), and RTT::mqueue::MQChannelElement< T >::signal().

ChannelElementBase::shared_ptr ChannelElementBase::getInputEndPoint ( ) [inherited]

Returns the first input channel element of this connection.

Will return the channel element the furthest away from the input port, or this if none.

Returns:
getInput() ? getInput()->getInputEndPoint() : this

Definition at line 96 of file ChannelInterface.cpp.

References RTT::base::ChannelElementBase::getInput().

ChannelElementBase::shared_ptr ChannelElementBase::getOutputEndPoint ( ) [inherited]

Returns the last output channel element of this connection.

Will return the channel element the furthest away from the output port, or this if none.

Returns:
getOutput() ? getOutput()->getInputEndPoint() : this

Definition at line 101 of file ChannelInterface.cpp.

References RTT::base::ChannelElementBase::getOutput().

PortInterface * ChannelElementBase::getPort ( ) const [virtual, inherited]

Gets the port this channel element is connected to.

Returns:
null if no port is connected to this element, the port (or a proxy representing the port) otherwise.

Reimplemented in RTT::internal::ConnOutputEndpoint< T >, and RTT::internal::ConnInputEndpoint< T >.

Definition at line 131 of file ChannelInterface.cpp.

template<typename T>
virtual FlowStatus RTT::base::ChannelElement< T >::read ( reference_t  sample,
bool  copy_old_data
) [inline, virtual, inherited]

Reads a sample from the connection.

sample is a reference which will get updated if a sample is available. The method returns true if a sample was available, and false otherwise. If false is returned, then sample is not modified by the method

Reimplemented in RTT::internal::ChannelBufferElement< T >, and RTT::internal::ChannelDataElement< T >.

Definition at line 116 of file ChannelElement.hpp.

References RTT::base::ChannelElement< T >::getInput(), and RTT::base::ChannelElement< T >::read().

Referenced by RTT::base::ChannelElement< T >::read(), and RTT::mqueue::MQChannelElement< T >::signal().

Removes the input channel (if any).

This call may delete channels from memory.

void ChannelElementBase::setOutput ( shared_ptr  output) [inherited]

Sets the output of this channel element to output and sets the input of output to this.

This implies that this channel element becomes the input of output. There is no setInput function since this function does both setting input and output of this and output.

Parameters:
outputthe next element in chain.

Definition at line 68 of file ChannelInterface.cpp.

Referenced by RTT::internal::ConnFactory::buildBufferedChannelInput(), RTT::internal::ConnFactory::buildBufferedChannelOutput(), and RTT::internal::ConnFactory::buildChannelInput().

template<typename T>
bool RTT::corba::RemoteChannelElement< T >::signal ( ) [inline, virtual]

Signals that there is new data available on this channel By default, the channel element forwards the call to its output.

Returns:
false if an error occured that requires the channel to be invalidated. In no ways it indicates that the sample has been received by the other side of the channel.

Reimplemented from RTT::base::ChannelElementBase.

Definition at line 134 of file RemoteChannelElement.hpp.

References RTT::corba::CorbaDispatcher::Instance().

Referenced by RTT::corba::RemoteChannelElement< T >::remoteSignal().

template<typename T>
virtual bool RTT::base::ChannelElement< T >::write ( param_t  sample) [inline, virtual, inherited]

Writes a new sample on this connection.

sample is the sample to write.

Returns:
false if an error occured that requires the channel to be invalidated. In no ways it indicates that the sample has been received by the other side of the channel.

Reimplemented in RTT::internal::ChannelBufferElement< T >, and RTT::internal::ChannelDataElement< T >.

Definition at line 103 of file ChannelElement.hpp.

References RTT::base::ChannelElement< T >::getOutput(), and RTT::base::ChannelElement< T >::write().

Referenced by RTT::mqueue::MQChannelElement< T >::signal(), and RTT::base::ChannelElement< T >::write().


The documentation for this class was generated from the following file:
