Orocos Real-Time Toolkit  2.5.0
Public Types | Public Member Functions
RTT::base::BufferInterface< T > Class Template Reference

A Buffer is an object which is used to store (Push) and retrieve (Pop) values from. More...

#include <rtt/base/BufferInterface.hpp>

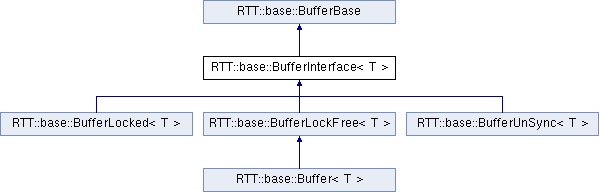

Inheritance diagram for RTT::base::BufferInterface< T >:
RTT::base::BufferBase RTT::base::BufferLocked< T > RTT::base::BufferLockFree< T > RTT::base::BufferUnSync< T > RTT::base::Buffer< T >

List of all members.

Public Types

typedef T value_t
typedef BufferBase::size_type size_type
typedef boost::shared_ptr
< BufferInterface< T > >
shared_ptr
typedef boost::call_traits< T >
::param_type
param_t
typedef boost::call_traits< T >
::reference
reference_t

Public Member Functions

virtual bool Pop (reference_t item)=0
 Read the oldest value from the buffer.
virtual size_type Pop (std::vector< value_t > &items)=0
 Read the whole buffer.
virtual value_t * PopWithoutRelease ()=0
 Returns a pointer to the first element in the buffer.
virtual void Release (value_t *item)=0
 Releases the pointer.
virtual bool Push (param_t item)=0
 Write a single value to the buffer.
virtual size_type Push (const std::vector< value_t > &items)=0
 Write a sequence of values to the buffer.
virtual void data_sample (const T &sample)=0
 Initializes this buffer with a data sample, such that for dynamical allocated types T, the buffer can reserve place to hold these elements.
virtual size_type capacity () const =0
 Returns the maximum number of items that can be stored in the buffer.
virtual size_type size () const =0
 Returns the actual number of items that are stored in the buffer.
virtual bool empty () const =0
 Check if this buffer is empty.
virtual bool full () const =0
 Check if this buffer is full.
virtual void clear ()=0
 Clears all contents of this buffer.

Detailed Description

template<class T>
class RTT::base::BufferInterface< T >

A Buffer is an object which is used to store (Push) and retrieve (Pop) values from.

Parameters:
TThe value type stored in this buffer.

Definition at line 55 of file BufferInterface.hpp.


Member Function Documentation

virtual size_type RTT::base::BufferBase::capacity ( ) const [pure virtual, inherited]

Returns the maximum number of items that can be stored in the buffer.

Returns:
maximum number of items.

Implemented in RTT::base::BufferLocked< T >, RTT::base::BufferUnSync< T >, and RTT::base::BufferLockFree< T >.

virtual void RTT::base::BufferBase::clear ( ) [pure virtual, inherited]
template<class T>
virtual void RTT::base::BufferInterface< T >::data_sample ( const T &  sample) [pure virtual]

Initializes this buffer with a data sample, such that for dynamical allocated types T, the buffer can reserve place to hold these elements.

Postcondition:
Calling this function causes all data in the buffer to be lost and the size being reset to zero.

Implemented in RTT::base::BufferLockFree< T >, RTT::base::BufferLocked< T >, and RTT::base::BufferUnSync< T >.

Referenced by RTT::internal::ChannelBufferElement< T >::data_sample().

virtual bool RTT::base::BufferBase::empty ( ) const [pure virtual, inherited]

Check if this buffer is empty.

Returns:
true if size() == 0

Implemented in RTT::base::BufferLocked< T >, RTT::base::BufferUnSync< T >, and RTT::base::BufferLockFree< T >.

virtual bool RTT::base::BufferBase::full ( ) const [pure virtual, inherited]

Check if this buffer is full.

Returns:
true if size() == capacity()

Implemented in RTT::base::BufferLocked< T >, RTT::base::BufferUnSync< T >, and RTT::base::BufferLockFree< T >.

template<class T>
virtual bool RTT::base::BufferInterface< T >::Pop ( reference_t  item) [pure virtual]

Read the oldest value from the buffer.

Parameters:
itemis to be set with a value from the buffer.
Returns:
true if something was read.

Implemented in RTT::base::BufferLockFree< T >, RTT::base::BufferLocked< T >, and RTT::base::BufferUnSync< T >.

template<class T>
virtual size_type RTT::base::BufferInterface< T >::Pop ( std::vector< value_t > &  items) [pure virtual]

Read the whole buffer.

Parameters:
itemsis to be filled with all values in the buffer, with items.begin() the oldest value.
Returns:
the number of items read.

Implemented in RTT::base::BufferLockFree< T >, RTT::base::BufferLocked< T >, and RTT::base::BufferUnSync< T >.

template<class T>
virtual value_t* RTT::base::BufferInterface< T >::PopWithoutRelease ( ) [pure virtual]

Returns a pointer to the first element in the buffer.

The pointer is only garanteed to stay valid until the next pop operation.

Note the pointer needs the be released by calling Release on the buffer.

Returns:
a pointer to a sample or Zero if buffer is empty

Implemented in RTT::base::BufferLockFree< T >, RTT::base::BufferLocked< T >, and RTT::base::BufferUnSync< T >.

Referenced by RTT::internal::ChannelBufferElement< T >::read().

template<class T>
virtual bool RTT::base::BufferInterface< T >::Push ( param_t  item) [pure virtual]

Write a single value to the buffer.

Parameters:
itemthe value to write
Returns:
false if the buffer is full.

Implemented in RTT::base::BufferLockFree< T >, RTT::base::BufferLocked< T >, and RTT::base::BufferUnSync< T >.

Referenced by RTT::internal::ChannelBufferElement< T >::write().

template<class T>
virtual size_type RTT::base::BufferInterface< T >::Push ( const std::vector< value_t > &  items) [pure virtual]

Write a sequence of values to the buffer.

Parameters:
itemsthe values to write
Returns:
the number of values written (may be less than items.size())

Implemented in RTT::base::BufferLockFree< T >, RTT::base::BufferLocked< T >, and RTT::base::BufferUnSync< T >.

template<class T>
virtual void RTT::base::BufferInterface< T >::Release ( value_t *  item) [pure virtual]
virtual size_type RTT::base::BufferBase::size ( ) const [pure virtual, inherited]

Returns the actual number of items that are stored in the buffer.

Returns:
number of items.

Implemented in RTT::base::BufferLocked< T >, RTT::base::BufferUnSync< T >, and RTT::base::BufferLockFree< T >.


The documentation for this class was generated from the following file:
