Orocos Simulink Toolbox

The Flander's Mechatronics Technology Centre ( www.fmtc.be ) has released a toolbox for creating Orocos components in Matlab/Simulink from The Mathworks. It lets you generate from Real-Time Workshop a ready to use component from a Simulink model. The toolbox works for Simulink in Linux and Windows and comes with a Windows installer and a user manual. A component generated with this toolbox can be immediately compiled and loaded in an Orocos application, without the need to write extra code.

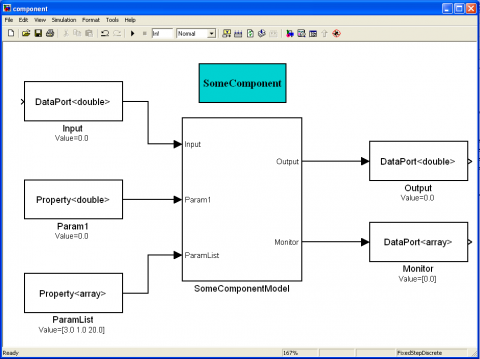

Simulink for Orocos example: Orocos blocks are added to a modelSimulink for Orocos example: Orocos blocks are added to a model

Users can build a component by adding Orocos data ports for communication with other components to their model and each model can be made run-time and XML configurable using Orocos properties. Multiple Simulink components can run together in the same application. The code has been made available under the GNU General Public License (GPL)


Windows installer: v1.4 - README for Windows
Linux tar.gz: v1.4 - README for Linux

User Manual

There is a User Manual which demonstrates an example.


You are free to use, modify and distribute this software as specified by the GPL. However, FMTC can only maintain third party contributions if the copyright is transfered to FMTC.

Matlab, Simulink and Real-Time workshop are registered trademarks of The Mathworks.
